CASI CORED WIRE

A Game-Changer in Steelmaking

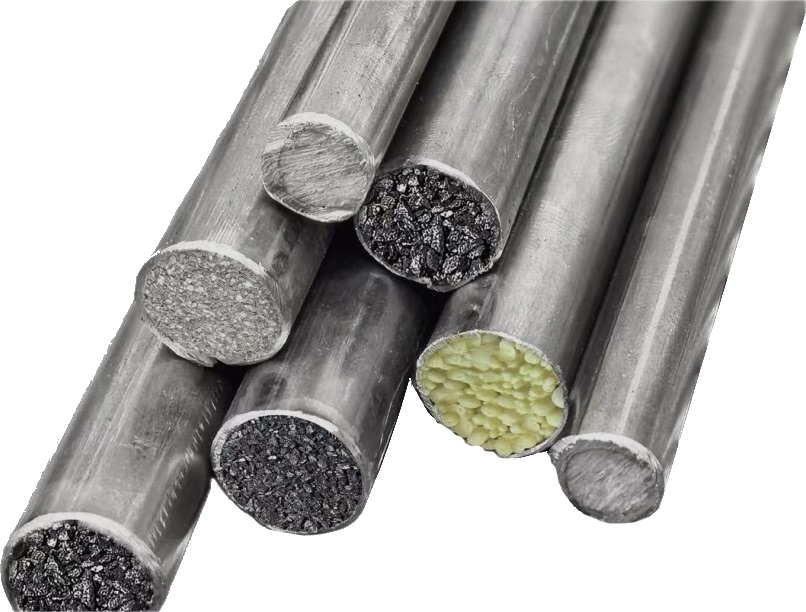

CaSi (calcium silicon/silicocalcium) Cored Wire is a type of metal cored wire that is filled with silicon-calcium alloy powder and wrapped by a steel tubular wire, which is widely used in steelmaking and foundry processes by injected directly into the molten metal by a wire feeding machine, where it dissolves rapidly and uniformlyin. CaSi cored wire is versatile and can be used in both electric arc furnace (EAF) and basic oxygen furnace (BOF) steelmaking processes, offering flexibility in steel production methods.
CaSi (calcium silicon) cored wire can be customized according to specific needs, requirements of different steel grades and processes.

Applications of CaSi (Silicocalcium) cored wire in steelmaking The main functions of CaSi (Calcium Silicon/Silicocalcium) cored wire in steelmaking

1. The main function of CaSi (calcium silicon/silicocalcium) cored wire in steelmaking is to act as a deoxidizing and desulfurizing agent. It can also improve the performance, plasticity, impact toughness and molten steel flow of steel.

2. By using CaSi (calcium silicon/silicocalcium) cored wire, the oxygen content in the steel can be significantly reduced by forming silica gas with silicon.

3. CaSi (calcium silicon/silicocalcium) cored wire reduces the content of harmful elements in molten steel, such as sulfur and phosphorus, by chemical reaction, forming calcium sulfide with calcium. Additionally, alumina and manganese sulfide can be reduced by reacting with calcium and silicon.

4. CaSi (calcium silicon/silicocalcium) cored wire can change the shape of inclusions, fine-tune the ingredients, ensure the stability of metals, rare earth elements, and enhance fluidity, castability and mechanical properties of steel.

5. CaSi (calcium silicon/silicocalcium) cored wire has many advantages over other methods of deoxidizing and desulfurizing materials, such as:

- reducing the amount of precious elements added;
- reducing the refining cost;
- avoiding the oxidation and burning of the alloy elements by the air and the slag;
- reducing the oxygen and sulfur content and modifying the inclusions;
- reducing the environmental pollution, power consumption, gas evolution, and slag formation.

The benefits of using CaSi cored wire in steelmaking Why metallurgical factories are using CaSi cored wire in steelmaking and foundry process

1. Deoxidation. Degassing agent:

CaSi cored wire is rich in silicon elements, and silicon and oxygen are very easy to produce silica gas. Using CaSi cored wire in steelmaking can significantly reduce the oxygen content in the steel. The process is very stable, reducing the phenomenon of steel spatter, and improving the safety factor of the deoxidation process.

2. Reducing Harmful Elements:

The raw materials used in steelmaking contain a lot of sulfur, phosphorus, and other harmful elements. Through the use of CaSi cored wire, these harmful elements in the steel can be significantly reduced. This is mainly achieved by using the reduction of its internal calcium elements, which chemically react with the harmful elements, generating calcium oxides that float on the surface of the steel for easy handling.

3. Cost Reduction:

CaSi cored wire is not only cheaper than traditional steelmaking deoxidizers but also relatively widespread in the application. It can replace or reduce raw materials, thus achieving the role of reducing costs and enhancing the benefits of manufacturers.

*Conclusion:

CaSi metal cored wire plays a crucial role in improving the quality of steel, reducing costs, and enhancing the efficiency of the steelmaking process.

The advantages of using CaSi cored wire in steelmaking
over other methods of deoxidizing and desulfurizing materials include:

1. CaSi cored wire can provide a faster and more complete dissolution and distribution of the alloy elements than other materials, which may have low solubility, uneven distribution, loss of alloy elements during the melting process and poor fluidity in the melt.

2. CaSi cored wire can prevent the oxidation and burning of the alloy elements by the air and the slag, and reduce the power consumption, slag formation, gas evolution and environmental pollution.

3. CaSi cored wire can fine-tune the ingredients and ensure the stability of metals and rare earth elements, and effectively change the shape of inclusions and improve the castability and mechanical properties of steel.

4. CaSi cored wire can reduce the amount of precious elements and the refining cost, and increase the efficiency and quality of the steelmaking process.

How to use CaSi cored wire in steelmaking

To use CaSi cored wire in steelmaking, your factory needs to have a Wire feeding machine that can deliver the cored wire to the ideal position in the molten steel. There are two methods of using CaSi cored wire: inner tap and outer tap:

1. The inner tap method is to feed the cored wire directly into the ladle;

2. The outer tap method is to place the coiled wire on the turntable of the pay-off device and feed it into the ladle through a catheter.

You can also control the feeding amount and speed of the cored wire by using a display counter and a speed controller on the Wire feeding machine.

Where to buy high-quality CaSi cored wire and how much does it cost

If your production needs high-quality CaSI cored wire, you can check out the KADEMAR Group, which is a leading supplier of cored wires for steel industry.
KADEMAR Group supplies various types of cored wires, including CaSi cored wire, produced according to the ISO standards and the individual Customers' orders.
The price of CaSi cored wire may vary depending on the market conditions, the specifications, the quantity, and the delivery terms.
If you will contact KADEMAR Group, you can receive more professional information about CaSi cored wire. Send your request via email: export@kademar.com

CHEMICAL SPECIFICATION OF CaSi CORED WIRE

We are committed to meeting both standard and unique requirements of our customers by offering the ability to produce CaSi cored wire with various parameters tailored to specific needs. Our manufacturing process allows for precise adjustments in chemical composition, physical dimensions, and other specifications to provide the highest quality and performance for your specific applications.

CaSi CORED WIRE Composition

Ca: ............................................................. 30 %
Si: .............................................................. 60 %

Powder filling density:............................ 230 gr
Wire Diameter:........................................ 13 mm
Powder weight (per coil):....................... 638 kg
Metal shell weight(per coil):.................. 448 kg
Total weight (per coil): ........................ 1086 kg
Coil inner diameter: ............................. 600 mm
Coil external diameter: ...................... 1150 mm
Coil height:.......................................... 1150 mm
Steel thickness:..................................... 0,4 mm

Wire steel quality: Cold rolled DIN EN 10130 Grade DC 01
Type of Cored Wire: horizontal and vertical

ADDITIONAL INFORMATION

Chemical Analysis Method: .......................... ICP

Marking: ...... drawing filler's symbols on the coil
Label: ................................ attached to each coil


Terms of delivery: FOB, CIF, CFR, CPT, DAP according to Incoterms-2010


Type of transport: ........... by truck, by container
Loading time: ............................ 5 working days

Net Weight (per coil): ..................... +/- 1086 kg
Gross Weight (per coil): ................. +/- 1111 kg

Safety measures: use appropriate personal protective equipment (PPE).

PACKAGE

STORAGE

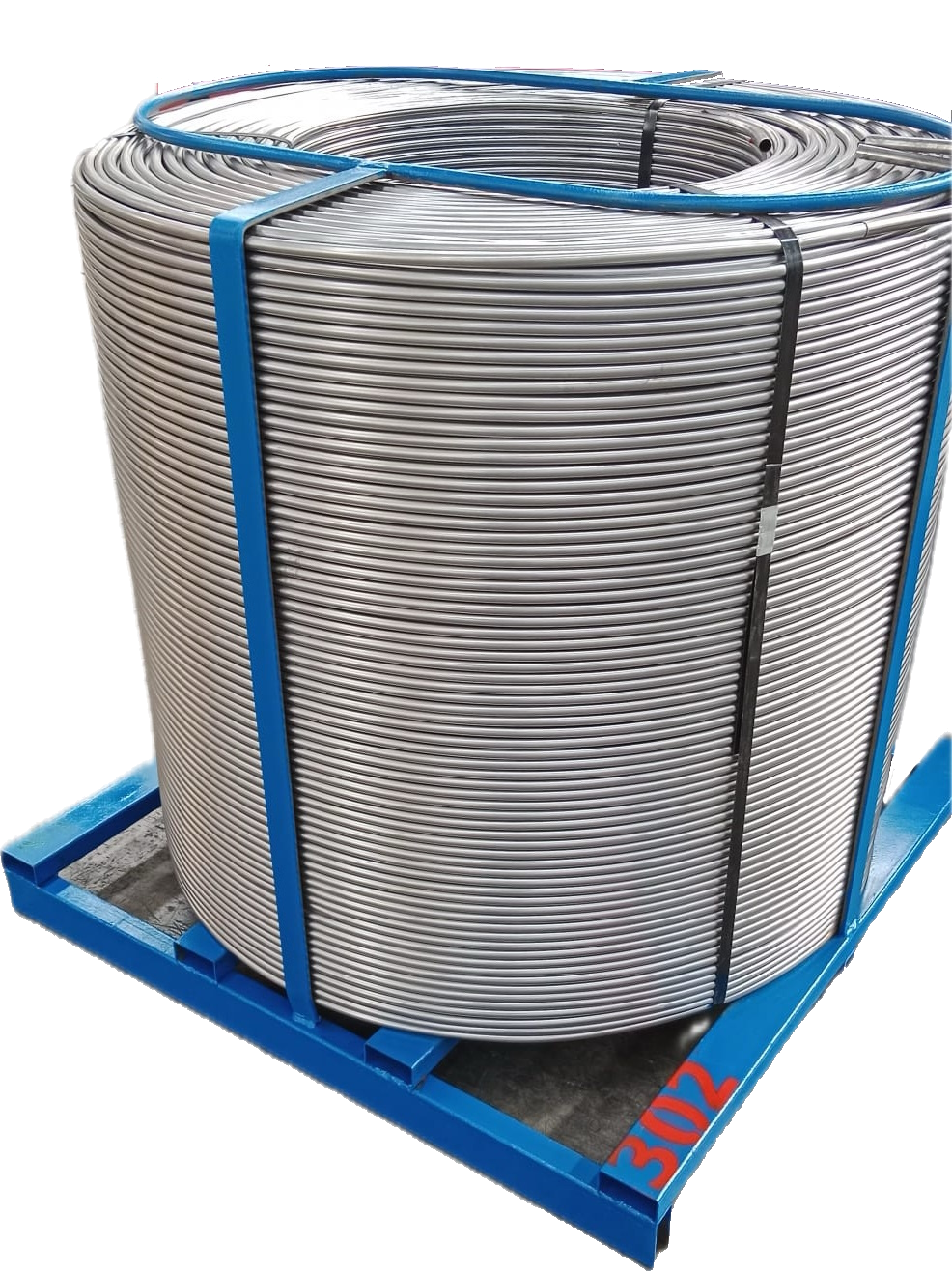

Coil of CaSi (Calcium Silicon) cored wire is packed into a waterproof bag and fixed on a metal base. Our packaging of a CaSi (Calcium Silicon) cored wire has several advantages for a Customer:

Storage conditions of CaSi (CaSi) metal cored wire: In original packaging and dry storage is 12 months from the date of production. Storing Calcium Silicon (CaSi) metal cored wire has several advantages for a Customer:

1. Protection:

The waterproof bag protects the CaSi (Calcium Silicon) cored wire from moisture, which can degrade its quality and effectiveness.

1.Quality Assurance:

Proper storage in original packaging and dry conditions helps maintain the quality and effectiveness of the wire, ensuring optimal performance when used.

2. Easy of Transport and Storage:

The metal base provides stability, making it easier to transport and store the coil without damage.

2. Cost-Effective:

The specified shelf life of 12 months allows for bulk purchasing and storage, potentially leading to cost savings. It also reduces the need for frequent reordering.

3. Consistent Quality:

This packaging method helps maintain the consistent quality of the CaSi cored wire by preventing exposure to harmful environmental factors.

3. Consistent Results:

Proper storage conditions ensure consistent wire performance, leading to predictable and reliable results in the steel refining process.

4. Efficient Use:

Coils can be delivered either horizontally or vertically depending on the kind of the injection facility. They can always be connected for a non-stop injection.

4. Extended Shelf Life:

The wire can be stored for up to 12 months without degradation, offering flexibility in usage and inventory management.

*Customization:

Other types of packaging are available upon request including coil size, metal base, and protective wrapping. These advantages of our packaging can lead to cost savings, improved product performance, and greater satisfaction for the Customer.

5. Safety:

Dry storage conditions reduce the risk of any moisture-related damage or safety hazards.
